Details of the geogrid
May. 28, 2020
Geogrid is made by polypropylene(PP) as the raw material,It is produced through the process of extruding, punching,
heating, longitudinal and transverse stretching.It can be used to enhancement of permanent bearable soft including highway.

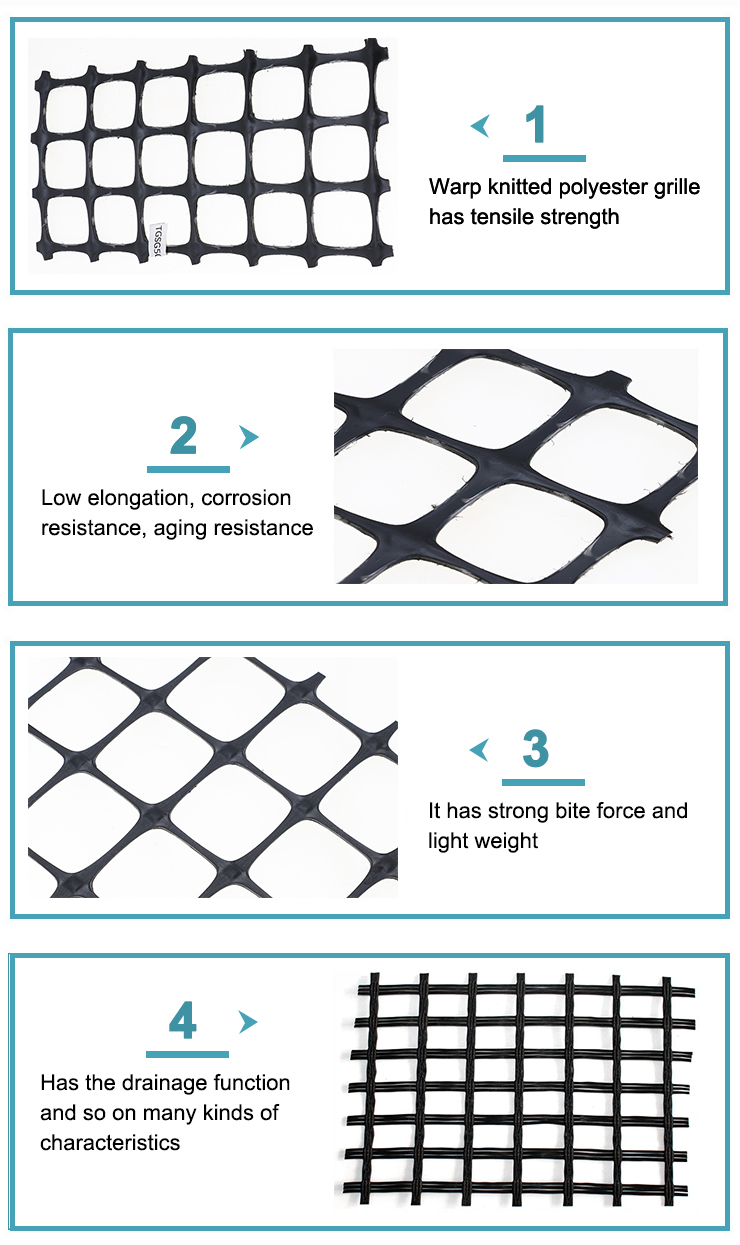

•High Tear Strength
•Flexible and durable
•Excellent Creep Resistance
•UV resistance
•Cost effective
•High chemical and biological resistance
•High Tensile Strength and Low Elgongation
•Optimun stability of the junction strength of the grid
•Increased pull-out resistance and compound strength
•High resistance to installation damage and ease of installation
| Performance / Specification | TGSG | TGSG | TGSG | TGSG | TGSG | TGSG | TGSG | TGSG | TGSG |
| 15-15 | 20-20 | 25-25 | 30-30 | 35-35 | 40-40 | 45-45 | 50-50 | 60-60 |
| Tensile Strength (KN/m) | MD | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 60 |
| CD | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 60 |
Elongation at break ≤ (%) | MD | 15 |
| CD | 13 |
Tensile Strength at 2% Elongation(KN/M) | MD | 5 | 7 | 9 | 10.5 | 12 | 14 | 16 | 17.5 | 27.5 |
| CD | 5 | 7 | 9 | 10.5 | 12 | 14 | 16 | 17.5 | 27.5 |
Tensile Strenghth at 5% Elongation(KN/M) | MD | 7 | 14 | 17 | 21 | 24 | 28 | 32 | 35 | 48 |
| CD | 7 | 14 | 17 | 21 | 24 | 28 | 32 | 35 | 48 |
| Roll Width (M) | 1----6 |
| Roll Length (M) | 100/75/50(According to customer's ) |
